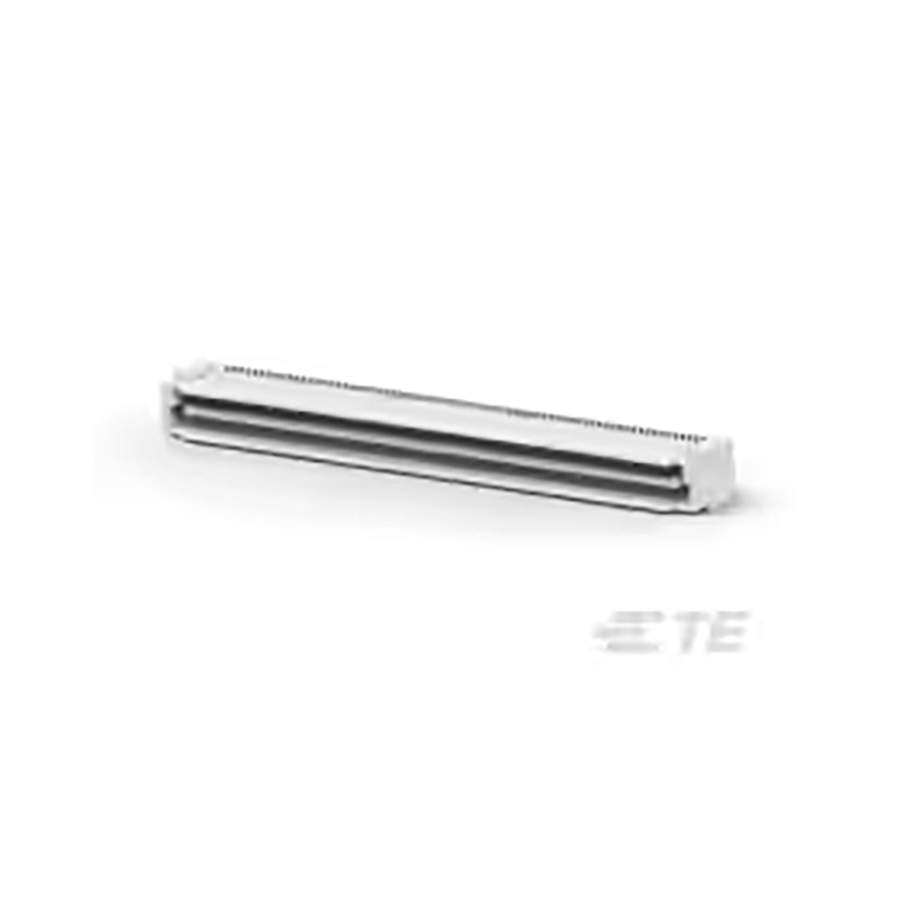

3-5177986-6
Manufacturer:
TE Connectivity
Mfr.Part #:
3-5177986-6
Datasheet:
Description:
Headers and Wire Housings SMD/SMT Plug, Tab Number of Positions:140 Pitch:800 µm
| Parameter | Value |
|---|---|
| Length | 61.8 mm |
| Termination | SMD/SMT, Solder |
| Max Operating Temperature | 125 °C |
| Min Operating Temperature | -40 °C |
| Height | 8 mm |
| Packaging | Reel |
| Voltage Rating | 100 V |
| Depth | 6 mm |
| Radiation Hardening | No |
| RoHS | Compliant |
| Insulation Resistance | 2 MΩ |
| Contact Plating | Gold |
| Contact Material(Contact Finish) | Brass |
| Pitch | 800 µm |
| Current Rating | 500 mA |
| Flammability Rating | UL94 V-0 |
| Orientation | Vertical |
| Operating Supply Voltage | 100 V |
| Lifecycle Status | Production (Last Updated: 1 week ago) |
| Gender | Female |
| Number of Contacts | 140 |
| ELV | Compliant |
| Connector Type | Plug, Tab |
| Number of Positions | 140 |
| Number of Rows | 2 |
| Row Spacing | 2.4 mm |
| Housing Material | Polymer |
| Contact Resistance | 30 mΩ |
| Max Voltage Rating (AC) | 100 V |
| Contact Current Rating | 500 mA |
| Housing Color | Natural |
| Plating | Gold |
| PCB Mounting Orientation | Vertical |
| Stackable | Yes |
| Stack Height | 19.9898 mm |
| Preloaded | Yes |
| Mated Stacking Heights | 20 mm |
| Manufacturer Lifecycle Status | ACTIVE (Last Updated: 1 week ago) |
| Sealable | No |
| Contact Finish Thickness - Mating | 200 nm |
| Mating Alignment | With |
| PCB Mount Retention | Without |
| PCB Mount Alignment | With |
Stock: 398
Distributors
pcbx
pcbxUnit Price$8.11502
Ext.Price$8.11502
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $8.11502 | $8.11502 |
| 10 | $6.89512 | $68.95120 |
| 25 | $6.46318 | $161.57950 |
| 50 | $6.15459 | $307.72950 |
| 100 | $5.96819 | $596.81900 |
| 300 | $5.26605 | $1579.81500 |
